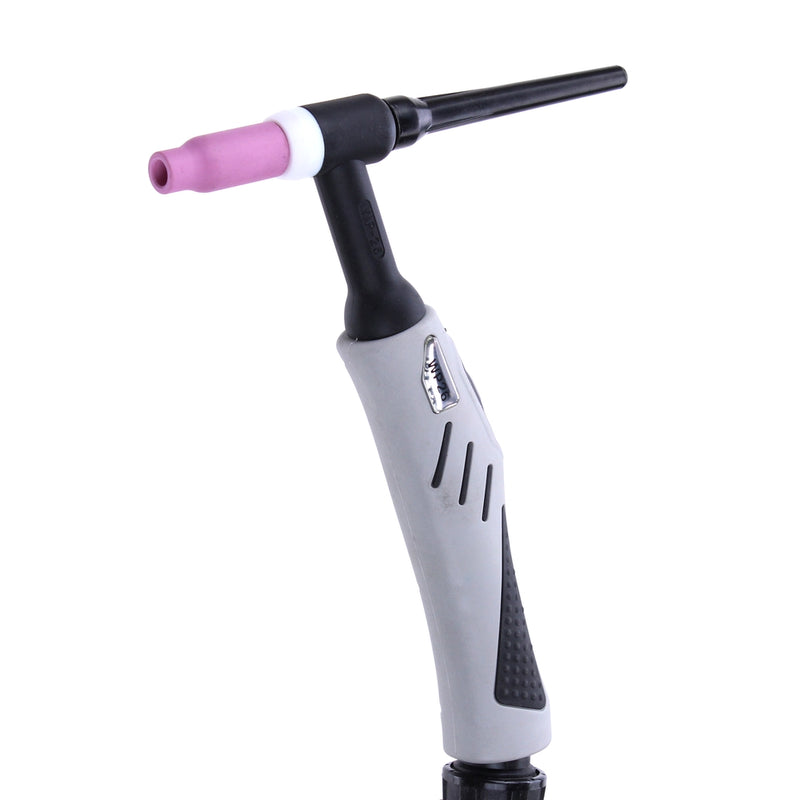

WP-26 Scorpion TIG Torch
This large air cooled TIG Torch is a great option and upgrade for CT-518EI Welder / Plasma Cutter. The WP 26 size allows for an awesome 100% duty cycle at 200 amps and 60% duty cycle at the full 250 amps, making it great for big jobs when there is a lot of continuous welding to be accomplished.
This WP 26 TIG Torch uses the same common consumables as a WP 17 TIg Torch, which are available at Eastwood and most welding supply stores.
Applications
- Fabrication
- Field Maintenance and Repair
- In-Plant Maintenance and Repair
- Schools/Training
- Ship/Boat
| Item | Tig Torch |
| Size | WP-26 |
| Cord Lenth | 25-ft |
| Material | Rubber / Copper |
| Installation Method | Tig-welding |
| Electrodes | 0.02" to 1/8" electrodes |
| Rated Current | 200A DC / 160A AC |
| External thread Size | M16*1.5MM connector |
| Style | Air-Cooled Tig welding |
| Length | 13.43'' |
| Depth | 12.56'' |
| Height | 2.32'' |
| Weight | 6 lbs |
