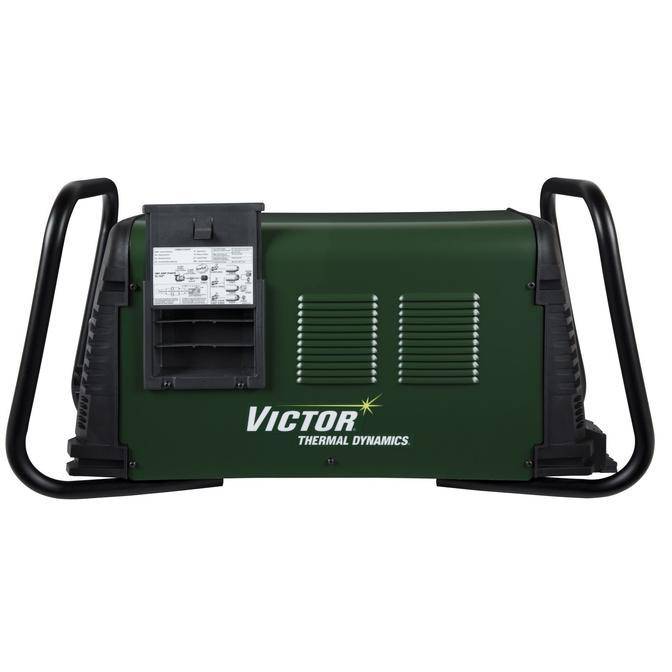

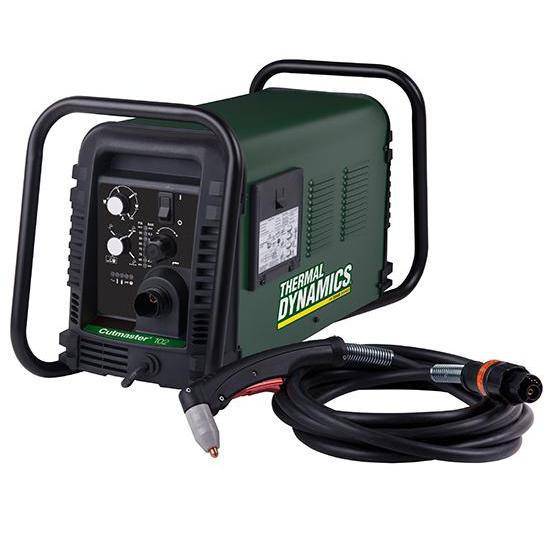

The CUTMASTER 102 is the fastest cutting 1" (25 mm) machine on the market today. The Cutmaster 102 Plasma Cutter's lightweight compact design combined with multiple voltage selection makes it the most portable and powerful cutting machine you can buy. A Thermal Dynamics 1Torch SL100 is included with this system.
The Cutmaster 102 weighs in at 62 lbs and provides 100 amps of cutting power. This unit's light weight compact design combined with multiple voltage selection makes it the most portable and powerful cutting machine available. This unit combined with the 1Torch® has a maximum cut capacity of 1 3/4" (45 mm). More cut capacity than any other system in its class.
Features

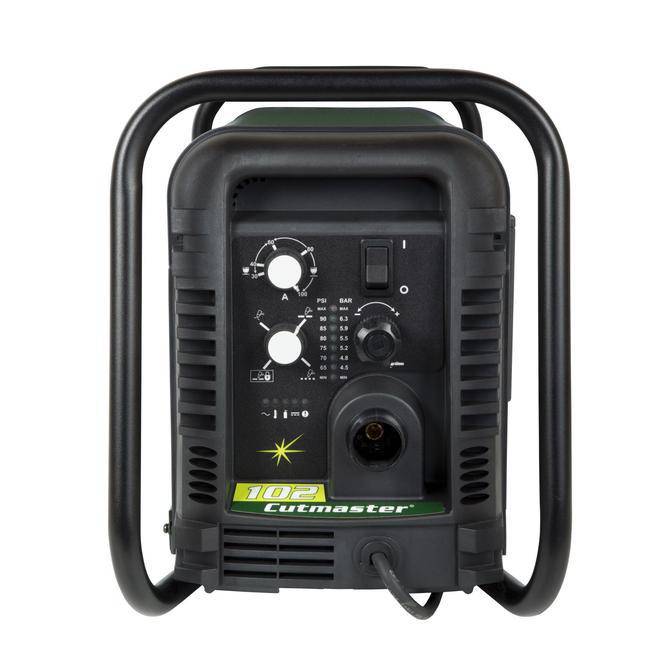

- All user controls located on the front panel
- Color coded LEDs display status conditions
- Storage compartment for easy access to spare parts and consumables
- Versatile 1Torch with ATC disconnect simplifies adding lead extensions or converting to a machine torch
- Industry's only 60 Amp drag tip
- True Guard roll bar facilitates transportation and increases protection
- Multi-voltage operation from 208 to 480 Volts in a single power supply
- Auto Pilot Restart instantly reignites the pilot arc while cutting expanded metals
- Lighter weight design for maximum portability.
- 20 ft. lead
- Spare parts kit included
- Maximum cut capacity of 1¾" (45 mm)--More than any other plasma cutting system in its class
| Item | Plasma Cutter |
| Cutting Configuration | Plasma Cutting |
| Effective Input Current | 208-230/460V, 1/3 ph, 400V, 3 ph, 600V, 3 ph |
| For Material Type | Mild Steel, Stainless, Aluminum |
| For Maximum Material Thickness | 1 3/4 in |
| For Minimum Material Thickness | 1/8 in |
| Input Frequency | 50/60 Hz |
| Input Voltage | 208 V AC, 230 V AC |
| Max. Input Current | 95 Amps @ 230V (Single-Phase) |
| Open Circuit Voltage | 320 V |
| Phase | Single-Phase |
| Plasma Cutter Model | 1-1330-1 |
| Maximum Output Current | 100 Amps |
| Plasma Cutting Minimum Output Current | 10 Amps |
| Plasma Cutting Output @ Duty Cycle | 100 Amps, 60%, 70 Amps, 100%, 80 Amps, 80% |
| Welding Processes | Plasma Cutting |
| Color | Green |
| Cutting Cable Length | 20 ft |
| Required Air Flow | 7.5 cfm |
| Ground Cord Length | 10 ft |
| Includes | Consumables Kit, SL100 75 Degrees hand torch with 20 ft Lead, Work Lead with Ground Clamp |
| Maximum Pressure - Air Compressor | 70 psi |
| Overall Depth | 30 in |
| Overall Height | 15 in |
| Overall Width | 12 in |
| Plasma Torch Type | Handheld |
| Plug Type | Bare Leads |
| Power Cord Length | 10 ft |
| Series | Cutmaster 102 |
| Weight | 28.1 kg |
