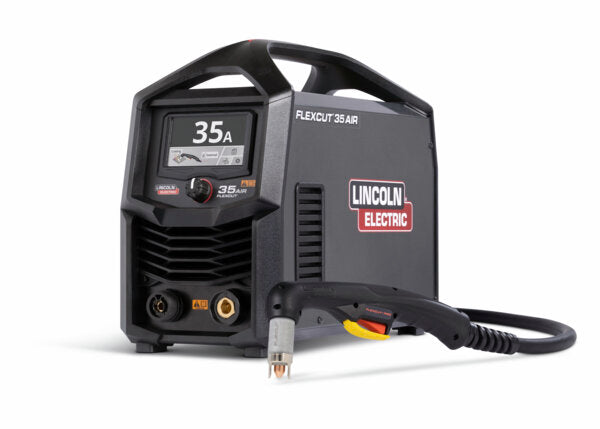

FlexCut® 35 Air Plasma Cutter Handheld Ready-Pak®
K5822-H
The FlexCut 35 Air plasma cutter comes with everything needed to handheld plasma cut mild steel, aluminum, or stainless steel with internal or external air
The FlexCut 35 Air delivers reliable cutting performance for small projects and light fabrication work. With steady power, consistent output, and a built-in air compressor, it keeps you moving without the need for shop air. The self-contained design makes setup faster, enhances portability, and ensures clean, reliable cuts anywhere you work. Built for versatility and ease of use, it offers precision and durability in a compact package. Perfect for everyday cutting of mild steel, aluminum, stainless steel, and expanded metal, it's designed to run efficiently while keeping operation simple.
Features
- 35 Amps of Cutting Power: Tackle thicker materials with confidence and precision.
- High Duty Cycle: Built for demanding applications without overheating or slowing down.
- LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments.
- Dual Voltage Flexibility: Plug into 120V or 230V power sources.
- Multi-Process Capability: Drag cutting and grid cutting with one machine for convenient versatility.
- Built-in Air Compressor - No compressed air, no problem. The FlexCut 35Air plasma cutter can use its built in air compressor, or external air if available.
- Portable Yet Rugged: Portable design without compromising strength—easy to move, hard to damage.
- 5 year warranty
What's Included
- (1) FlexCut 35 Air Plasma Cutter
- (1) FlexCut PRO Torch
- (1) Ground Cable & Clamp
- (1) Shoulder Strap
- (1) Input Power Cord
- (1) 120V Adapter
- (2) Nozzles
- (2) Electrodes
- (1) Swirl Ring
- (1) Retaining Ring
- (1) Shield
Machine Inputs& Outputs
| Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) | 120/1/60 |
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | 27A/94V/20% |
| Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) | 16A/86.4V/60% |
| Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) | 15A/86V/100% |
| Phase 1: Input Current at Max Rated Ouput #1 (Current) | 28A |
| Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) | 240/1/60 |
| Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) | 35A/94V/35% |
| Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle) | 27A/90.8V/60% |
| Phase 1: Rated Output #2C (Current/Voltage/Duty Cycle) | 21A/88.4V/100% |
| Phase 1: Input Current at MAX Rated Output #2 (Current) | 17.5 A |
Product Weights & Dimensions
| Dimensions (H x W x D) | 14.1 in x 8.1 in x 18.4 in (359 mm x 205 mm x 468 mm) |
| Net Weight | 35 lbs (15.9 kg) |
General Specifications
| Machines Processes | Plasma Cutting |
| Open Circuit Voltage | 320 VDC |
| Ingress Protection Rating | IP23 |
| Plasma Machines Process | Cutting |
| Torch Included | Yes |
| Torch Cooling | Air |
| Gas Supply | Air or Nitrogen (Internal or External) |
| Gas Pressure Required | 90-130 psi |
| Recommended Cutting Capacity (Mild Steel) (In/ft) | 1/4 in @ 20 ipm |
| Maximum Cutting Thickness (Mild Steel) (ln/Ft) | 3/8 in @ 10 ipm |
| Maximum Severance (Mild Steel) (In/Ft) | 1/2 in @ 5 ipm |
| Typical Application | Construction Automotive General Fabrication Marine Fabrication & Repair Structural Fabrication |
| Warranty | 5 Years |
