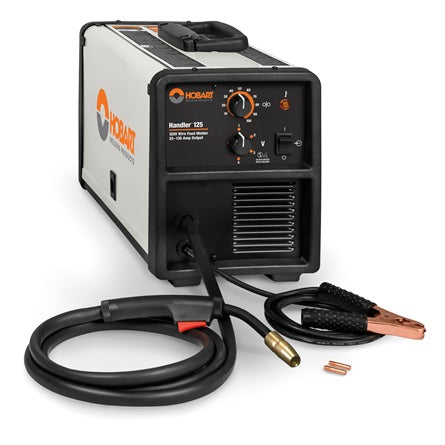

Handler® 125 MIG Welder

A reliable, portable wire feed welder that’s perfect for a variety of projects. Runs on 120V input power, welds up to 3/16 in. mild steel, and is MIG capable with a built-in gas valve.

Features

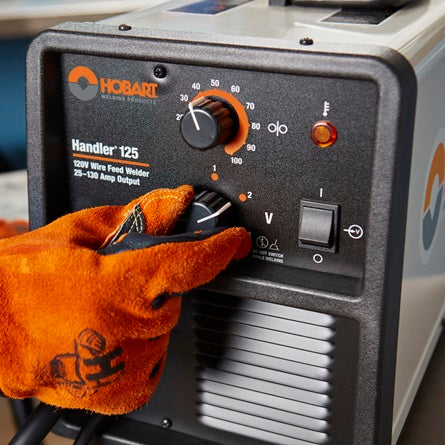

Four output voltage settings - Four voltage ranges allow you to adjust the arc for different thicknesses.
Factory-installed gas solenoid - Easy for you to change from flux-cored wire to MIG welding.
Built-in contactor - Keeps wire electrically "cold" until trigger is pulled which gives you ease of use.
Durable feed head with quick-release drive roll tension lever - Positive feed with adjustable tension gives you easy access to thread new wire.
Spool hub assembly accommodates 4- or 8- inch spools - Offers you flexibility to use small or large spools of wire to better suit your welding needs.
Self- resetting thermal overload protection - Protects power transformer from thermal overload to provide you maximum reliability.
Broad output range of 25 – 130 Amps. - Allows you to weld up to 1/8 in. steel with flux-cored wire.

Includes

Comfortable 8 ft. (2.4 m) H-9D gun with liner for .030-.035 in. (0.8 -0.9 mm) diameter wire.
Work cable with clamp
(2) - 0.030 (0.8 mm) contact tips
Power cord with molded plug
Weld set -up chart
Owner’s manual with installation, operation and maintenance guidelines.

Title	Handler® 125 MIG Welder
Processes	Flux Cored (FCAW) / MIG (GMAW)
Industries Interests	Farm and Ranch
Material Thickness	Mild Steel 24 ga. (0.8 mm) - 3/16 in. (4.8 mm)
Weldable Metals	Stainless Steel / Steel
Input Voltage	110/115/120 V
Input Phase	1-Phase
Current Type	DC
Rated Output	80 Amps @ 25% duty cycle
Max Open Circuit Voltage	28 VDC
Wire Feed Speed	88 IPM - 545 IPM
Wire Diameter	Solid Steel 0.024 in. - 0.03 in. Flux Cored 0.03 in. - 0.035 in. Flux Cored 0.8 mm. - 0.9 mm.
Weld Output	CV
Applications	Welding Projects
Net Width	10 in
Net Height	13.5 in
Net Length	19.4 in
Net Weight	57.5 lbs
Warranty	3 Years Hobart Warranty
Accessories	Miller Contact Tip: 219.14.000067 Miller Slip Type Nozzle: 219.14.169715 Arcunion Welder's Cart: 219.07.0176 TechniWeld Flux Cored Spool 71T-GS: 219.10.00375 Chemstar Anti-Spatter Spray: 219.09.00700
