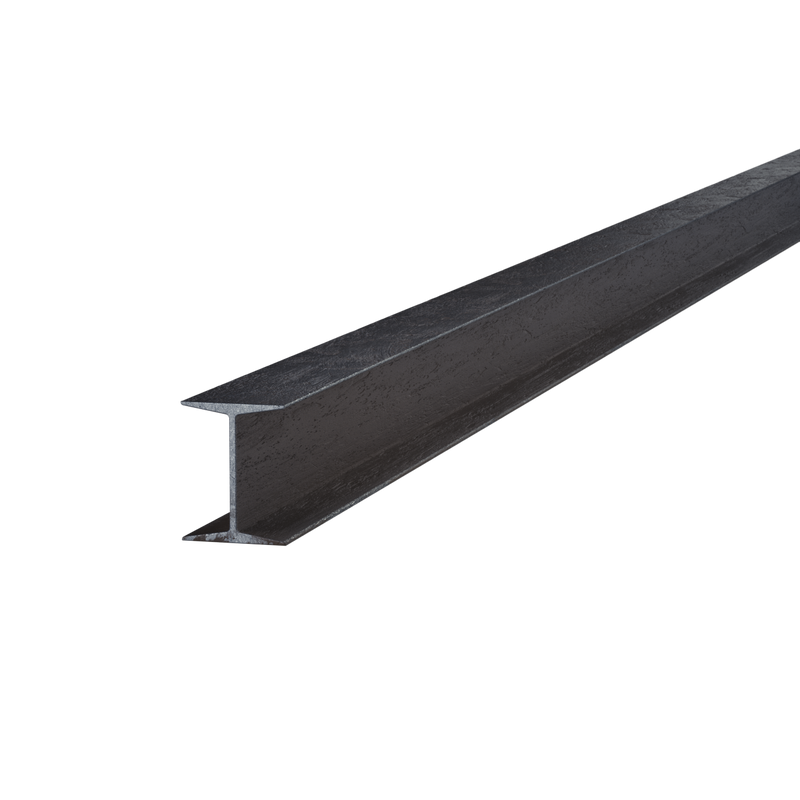

This is a Black Steel A992-11 5'' x 3’’ x 10# x 20' S Beam.
The "#" of the Beam means the Weight Per Foot in Pounds. When multiplied by the length, it will give you the total weight of the channel.
I-Beams, also known as H-Beams have and I or H cross-section. The horizontal elements of the “I” are flanges while the vertical element is the “web”. I-Beams are commonly made of structural steel but can be formed out of aluminum. I-beams are most widely used in construction and can have an application for use in both beams as well as columns. Infra-Metals offers many different sizes, lengths, and specifications for I-beams.
A992 standard covers components used in building frames, structures, and bridges, especially rolled steel structural components. This steel is comprised of a mixture of elements, including chrome, copper, vanadium, molybdenum, and nickel.
Wide Flange Beam are uniquely measured by the Depth of Section x Flange Width x Flange Thickness x Web Thickness.
This Beam can be custom cut to lengths of your choice, please click "add cuts" to customize the exact measurements you need.
| Item | S Beam |
| Material | Black Steel |
| Material Grade | A992-11 |
| Section Number | S5 |
| Depth of Section | 5'' |
| Flange Width | 3'' |
| Flange Thickness | .326'' |
| Web Thickness | .214'' |
| Length | 20' |
| Weight Per Foot | 10 lbs |
| Total Weight | 200 lbs |
| Cuttable? | Yes |
This is a Black Steel A992-11 5'' x 3’’ x 10# x 20' S Beam.
The "#" of the Beam means the Weight Per Foot in Pounds. When multiplied by the length, it will give you the total weight of the channel.
I-Beams, also known as H-Beams have and I or H cross-section. The horizontal elements of the “I” are flanges while the vertical element is the “web”. I-Beams are commonly made of structural steel but can be formed out of aluminum. I-beams are most widely used in construction and can have an application for use in both beams as well as columns. Infra-Metals offers many different sizes, lengths, and specifications for I-beams.
A992 standard covers components used in building frames, structures, and bridges, especially rolled steel structural components. This steel is comprised of a mixture of elements, including chrome, copper, vanadium, molybdenum, and nickel.
Wide Flange Beam are uniquely measured by the Depth of Section x Flange Width x Flange Thickness x Web Thickness.
This Beam can be custom cut to lengths of your choice, please click "add cuts" to customize the exact measurements you need.
| Item | S Beam |
| Material | Black Steel |
| Material Grade | A992-11 |
| Section Number | S5 |
| Depth of Section | 5'' |
| Flange Width | 3'' |
| Flange Thickness | .326'' |
| Web Thickness | .214'' |
| Length | 20' |
| Weight Per Foot | 10 lbs |
| Total Weight | 200 lbs |
| Cuttable? | Yes |
