SKYARC 2650 FX
Maximum power 1ph
An equipment design to give the best results in a daily use, connectivity excelling, may be connected in any power source from 95 to 270V. Also allows a secure generator connection a 30% smaller than the traditional inverters and allows up to 150 meters extensions. Without any power loss. Great welding quality in every type of rods, 6013, 7018,6010, 6011, SS.
Feature
- Makes easier to START the ARC, preheating the rod.
- Improves the ARC STABILITY, and prevents the rod from sticking.
- If the rod sticks, the machine will stop the power, so it can start again easily.
- Makes easier the start of the Arc in TIG without contaminating the tungsten.
- The ultimate technology by microprocessor to provide you the BEST ARC.
- ULTRA POWER, it’s a technology SWEISS exclusive, allows to connect the machine power source from 95 to 270V. Saves 40% of electric consumption. Allows to use power generators about 30% smaller. More power when plug to 110V.
Included
- Rod Holder set, 3m cable cu16 – (SWKPE163)
- Earth clamp set, 3m cable cu16 – (SWKPM162)
| Item | Sweiss® Welder SKYARC 2650 FX |
| Amperage | 5 – 200A |
| Duty cycle at 40°C | 50% |
| Current type | DC |
| Ocv | 50 – 95V (ULTRA ARC) |
| Input voltage | 110 / 220V (1 Ph) 95 – 270V |
| Frequency | 50 / 60 Hz |
| Max. consumption (110/220V) | 30A – 40A |
| TIG | LIFT ARC |
| Weight | 10 kG |
| Dimensions (mm) | 425 x 165 x 295 |
| IP | IP23S |
| Insulation | F |
| Connection type | 1 Ph |
| Rods | Ø 1.6 – 5.0 mm. (3/16”) |
| Fast connectors (DINSE) | 35/50 |
| Front/back material | Plástico |
| Casing material | Acero |
| Regulations | CE, EN-60974-1, EN-60974-10 |
| Rod Types | 6013, 7018, 6011, SS… |
| Sweiss Code | SWA2650 |

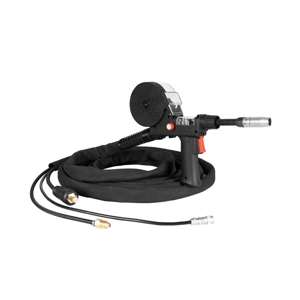

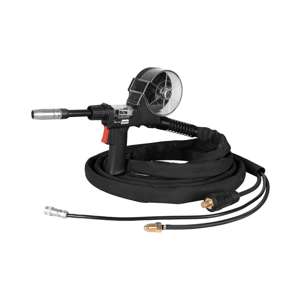

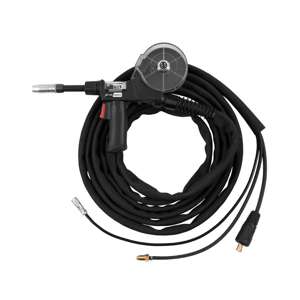

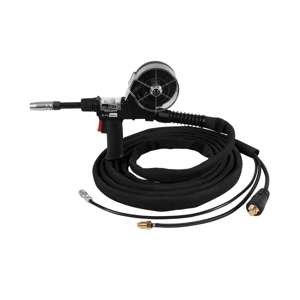

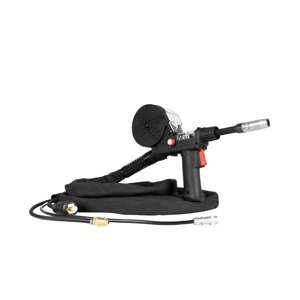

| Accessories | Sweiss Titan Weld 360 Spool Gun: 219.21.M1-125 TechniWeld Flux Cored Spool 71T-GS: 219.10.00375 |
