The POWER MIG® 211i MIG welder is a straightforward and dependable machine that is ideal for MIG and Flux-Cored welding.
SOLID, DEPENDABLE WELDING
The POWER MIG® 211i MIG welder is a straightforward and dependable machine that’s ideal for MIG and flux-cored welding. This reliable diehard is your best friend on the farm, in the small shop, or for maintenance and repair work. The seven-segment display with basic knob controls and a simple three-step setup process gets you welding quickly – and when it’s time to move, the sleek case with multiple lift points make it extremely portable. If you’re looking for an incredibly simple, reliable MIG welder that won’t break the bank, the POWER MIG 211i MIG welder is ready to go to work for you.
FEATURES
- Simple user interface - Seven segment display with basic knob controls.
- Process Capabilities - MIG, Flux-Cored and Spool Gun.
- Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
- Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop.
- Robust and Reliable Wire Drive - Ensures proper and consistent feeding for optimal welding experience.
- Lightweight and Portable - Only 41 lbs
Included
- Magnum® PRO 100L Gun 10 ft. (3.0 m) (K4528-1)
- 230V to 120V power cord adapter
- Work Cable and Clamp
- Adjustable Gas Regulator and Hose
- Gas Nozzle
- Gun Cable Liner (pre-installed in gun)
- Spindle Adapter
- Sample 2 lb (0.91 kg) Spool of SuperArc® L-56® Mild Steel MIG Wire(EDO30631)
- 0.030-0.035in. (0.8 - 0.9 mm) Drive Roll (Installed)
- 0.030 - 0.045 in. (0.8 - 1.1 mm) Knurled Drive Rolls
- and 0.025 - 0.035 in. (0.6 - 0.9 mm) Wire Guide (Installed)
Machine Inputs & Outputs
| Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) | 120/1/60 |
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | MIG 95Amps/18.8/60% 75Amps/17.8V/100% |
| Phase 1: Input Current at Max Rated Ouput #1 (Current) | 20Amps |
| Phase 1: Input Voltage #2 (Voltage/Phase/Hertz) | 230/1/60 |
| Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle) | MIG 175Amps/22.8V/30% 90Amps/18.6V/100% |
| Phase 1: Input Current at MAX Rated Output #2 (Current) | 22.5Amps |
Product Weights & Dimensions
| Dimensions (H x W x D) | 15.5 in x 10.75 in x 22 in (394 mm x 273 mm x 558 mm) |
| Net Weight | 41lbs (18.6kg) |
Machines
| IEC Rating | IP21S |
| Max Rating | 211Amps |
| Output Range by Mode | MIG: 20-211Amps |
| Number of Operators per Machine | 1 |
| Machines Communication Technology | analog |
| Work Lead Connector Type | Dinse |
| Welding Gun Cable Assembly Length | Magnum PRO 100L |
| Work Cable Length | 10 FT |
| Spool Gun Compatible (Duty) | Light |
Wire and TIG Feeders
| UI type | Meters |
| Wire Feeders Processes | MIG Flux Cored |
| Contact Tips Included | Yes |
| Sample MIG Wire Included | Yes |
Basic Specification
| Input Voltage | 120/230 |
| Input Current | 120V: 15Amps, 230V: 15Amps |
| Input Hertz | 60 |
| Input Power | 120/230/1/60 |
| Input Phase | 1 |
| Mode Icon | CV |
| Output Range | 120V: 20-140Amps DC 230V: 20-211Amps DC Max. OCV : 76V |
| Polarity | DC |
| Rated Output | 120V: 95Amps/18.8/60% 230V: 175Amps/22.8V/30% |
| Typical Application | Construction Automotive General Fabrication Maintenance & Repair Repair Welding |
| Warranty | 3 Years |

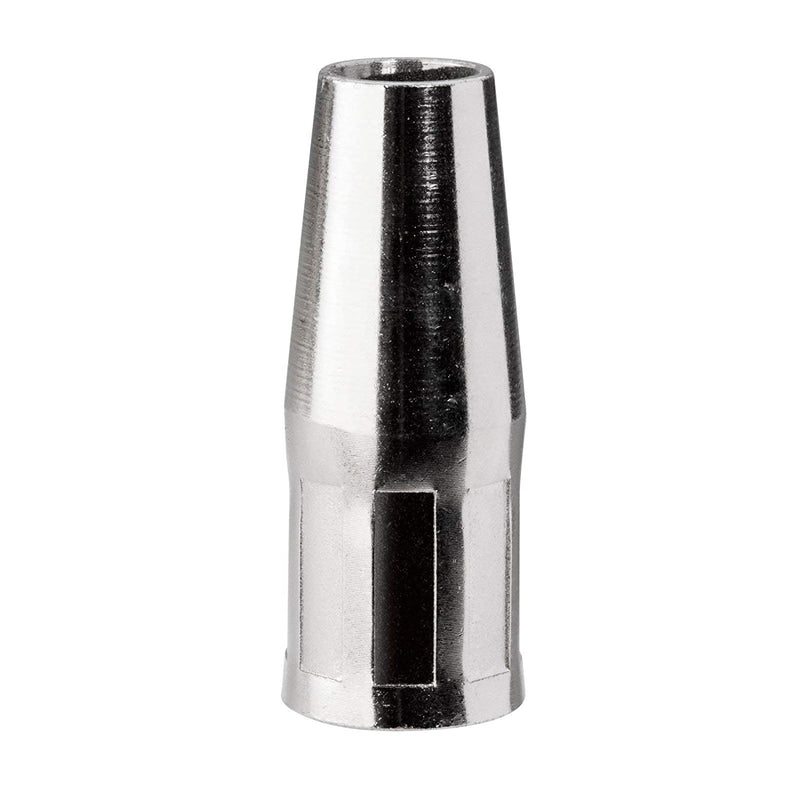

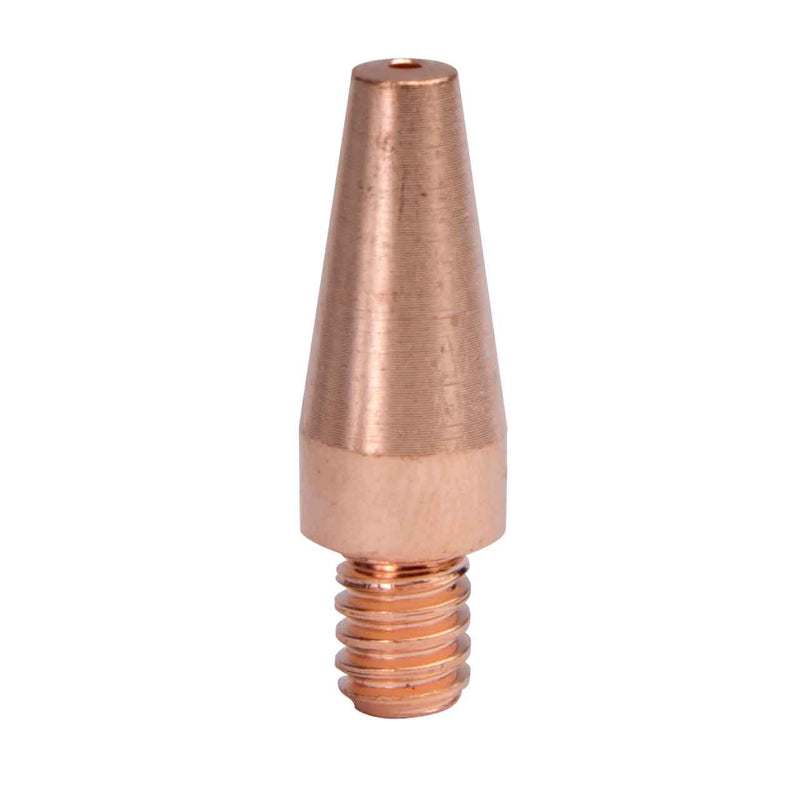

| Accessories | Lincoln Tapered Contact Tip: 219.15.KP2744-030T Lincoln Thread-On Flush Gas Nozzle: 219.15.KP3075-1-50F Lincoln Liner KP45-40-15: 219.15.KP45-40-15 Chemstar Anti-Spatter Spray: 219.09.00700 TechniWeld Flux Cored Spool 71T-GS: 219.10.00375 Lincoln Magnum Pro 100SG Spool Gun: 219.15.K3269-1 |
