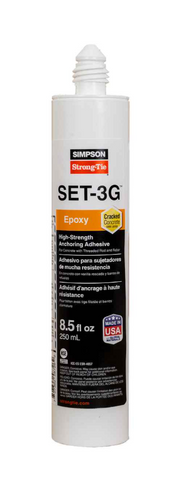

SET-3G is an epoxy-based anchoring adhesive with high design strength and proven performance. SET-3G is a 1:1 ratio, two-component, anchoring adhesive for concrete (cracked and uncracked). SET-3G installs and performs in a variety of environmental conditions
Features
- Exceptional performance — superior bond strengths permit ductile solutions in high seismic areas.
- Design flexibility — improved sustained load performance at elevated temperature.
- Jobsite versatility — can be specified for all base material conditions when in-service temperatures range from -40°F (-40°C) to 176°F (80°C).
- Recognized per ICC ES AC308 for post-installed rebar development and splice length design provisions.
- Approved for installation with multiple vacuum-drill bit systems without further hole cleaning. See Code Report (ESR-4057) and Engineering Letter for approved systems.
- Wire brush hole-cleaning system for conventional blow-brush-blow cleaning method for anchoring.
- With higher bond strengths, ductile solutions can often be achieved with SET-3G in high seismic areas.
- Low-odor formulation.
- Manufactured in the USA using global materials.
- During the installation of SET-3G, when the correct installation processes are followed, there is no performance difference between water-saturated concrete, water-filled holes, or submerged concrete.
- For use with potable water.
Applications
- Mass Timber / Cross-Laminated Timber
- Seismic (New Construction)
- Water / Wastewater Facilities
- Concrete — Cracked
- Seismic Retrofit
| Tema | Set-3G10 |
| Mix Ratio/Type | 1:1 Epoxy |
| Color mezclado | Grey |
| Materiales de base | Concreto y mampostería - agrietado y sin crema |
| Condiciones del material básico | Seco, Agua -saturada, llena de agua y sumergida |
| Tipo de ancla | Barra de empuje o rebar |
| Instalación de substrato Temperatura | 40°F (4°C) a 100°F (38°C) |
| Rango de temperatura en el servicio | -40°F (-40°C) a 176°F (80°C) |
| Temperatura de almacén | 45°F (7°C) y 90°F (32°C) |
| Shelf Life | 24 meses |
| Compuesto orgánico Volátil (VOC) | 2g/L |
