Champion® Elite 225 Engine-Driven Welder
The heavy-duty, All-in-One Engine Driven Welder combines 10,000-watt auxiliary power with a 225-amp DC welder. Designed for Stick welding with quick and easy arc starts.
Features
- Heavy-duty construction - Offers you stamina and long dependable service. Enclosed design, large battery, rugged electrical connections and wiring, and circuit breaker protection.
- Smooth and consistent arc starts - Allows you smooth arc starts with minimal "sticking".
- Quick-set amperage control - Allows you to easily dial in your precise weld setting. Refer to Electrode Key on the front panel to set the correct amperage for your weld.
- Lightweight and compact design - Lightweight and portable design allows easy movement around the jobsite and fuel efficiency for transporting. Compact design allows more space while operating equipment, as well as in the back of a vehicle.
- Simple User Interface - New interface provides a user-friendly experience with single amperage knob. Also includes easy to read fuel display that shows your hour/meter and service reminders.
- Rugged Vanguard Engine - Saves you time and money with the dependable engine which conserves fuel and provides long operation before refueling. 11-gallon fuel tank and low oil pressure shutdown are standard features.
- Weld and auxiliary power efficiency - The upgraded Champion Elite 225 offers enhanced solutions including full auxiliary power at any amperage, no arc interference from other tools, and no power spikes.
- Multitude of power inputs - Two 120-volt plugs, the NEMA 6-30 and NEMA 6-50 provide anything from common job site tools to plasma cutters to four prong receptacles for powering various job site applications.
| Título | Champion® Elite 225 Welder motorizado |
| Sectores de interés | Granja y rancho / Reparación automática |
| Amperaje | 25 Amps - 225 Amps |
| Metales soldables | Metales / acero inoxidable / aceros |
| Tipo actual | AC / DC |
| Portabilidad | Ojo de elevación (Standard) |
| Marca del motor | Vanguard |
| Motor Idle Speed | 2400 RPM |
| Motor de velocidad de soldadura | 3600 RPM |
| Tamaño del tanque de combustible | 11 chica. |
| Tipo de combustible | Gasolina |
| Equitación | 23 hp |
| Soldado | CC |
| Productos ralentizados | 225 A @ 100% Duty Cycle |
| Potencia continua auxiliar de fase única | 9500 W |
| Potencia auxiliar de pico de fase única | 10000 W |
| Sound Rating | 72,5 dB Max Carga de soldado |
| Aplicaciones | Fabricación |
| Ancho neto | 26,5 en |
| Altura neta | 20.13 en |
| Duración neta | 37.06 en |
| Peso neto | 373 libras |
| Garantía | Garantía de 3 años de Hobart |

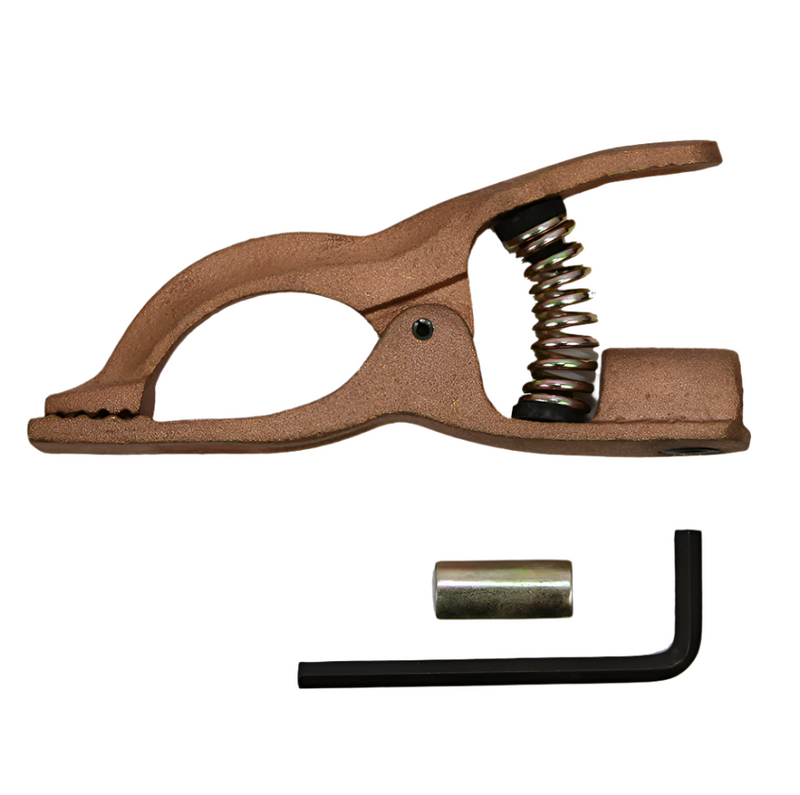

| Accesorios | Welding Cable: 219.09.00115 TechniWeld ArcStar Electrode Holder: 219.09.00001 TechniWeld ArcStar Ground Clamp: 219.09.00042 TechniWeld Connector Terminal: 219.09.00153 TechniWeld ArcStar Cable Connector: 219.09.00185 Signature Series Synthetic Motor Oil: 219.17.0003 |
Champion® Elite 225 Engine-Driven Welder
The heavy-duty, All-in-One Engine Driven Welder combines 10,000-watt auxiliary power with a 225-amp DC welder. Designed for Stick welding with quick and easy arc starts.
Features
- Heavy-duty construction - Offers you stamina and long dependable service. Enclosed design, large battery, rugged electrical connections and wiring, and circuit breaker protection.
- Smooth and consistent arc starts - Allows you smooth arc starts with minimal "sticking".
- Quick-set amperage control - Allows you to easily dial in your precise weld setting. Refer to Electrode Key on the front panel to set the correct amperage for your weld.
- Lightweight and compact design - Lightweight and portable design allows easy movement around the jobsite and fuel efficiency for transporting. Compact design allows more space while operating equipment, as well as in the back of a vehicle.
- Simple User Interface - New interface provides a user-friendly experience with single amperage knob. Also includes easy to read fuel display that shows your hour/meter and service reminders.
- Rugged Vanguard Engine - Saves you time and money with the dependable engine which conserves fuel and provides long operation before refueling. 11-gallon fuel tank and low oil pressure shutdown are standard features.
- Weld and auxiliary power efficiency - The upgraded Champion Elite 225 offers enhanced solutions including full auxiliary power at any amperage, no arc interference from other tools, and no power spikes.
- Multitude of power inputs - Two 120-volt plugs, the NEMA 6-30 and NEMA 6-50 provide anything from common job site tools to plasma cutters to four prong receptacles for powering various job site applications.
| Título | Champion® Elite 225 Welder motorizado |
| Sectores de interés | Granja y rancho / Reparación automática |
| Amperaje | 25 Amps - 225 Amps |
| Metales soldables | Metales / acero inoxidable / aceros |
| Tipo actual | AC / DC |
| Portabilidad | Ojo de elevación (Standard) |
| Marca del motor | Vanguard |
| Motor Idle Speed | 2400 RPM |
| Motor de velocidad de soldadura | 3600 RPM |
| Tamaño del tanque de combustible | 11 chica. |
| Tipo de combustible | Gasolina |
| Equitación | 23 hp |
| Soldado | CC |
| Productos ralentizados | 225 A @ 100% Duty Cycle |
| Potencia continua auxiliar de fase única | 9500 W |
| Potencia auxiliar de pico de fase única | 10000 W |
| Sound Rating | 72,5 dB Max Carga de soldado |
| Aplicaciones | Fabricación |
| Ancho neto | 26,5 en |
| Altura neta | 20.13 en |
| Duración neta | 37.06 en |
| Peso neto | 373 libras |
| Garantía | Garantía de 3 años de Hobart |
| Accesorios | Welding Cable: 219.09.00115 TechniWeld ArcStar Electrode Holder: 219.09.00001 TechniWeld ArcStar Ground Clamp: 219.09.00042 TechniWeld Connector Terminal: 219.09.00153 TechniWeld ArcStar Cable Connector: 219.09.00185 Signature Series Synthetic Motor Oil: 219.17.0003 |
