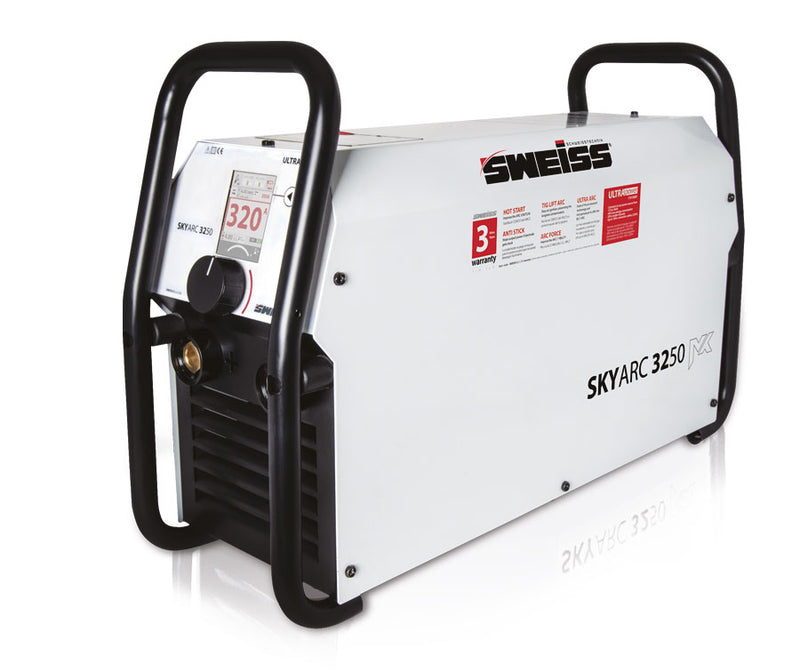

SKYARC 3250 MX
The SKY ARC ULTRA 3250 MX machine, its one of the most powerful and advanced in the market, allow connectivity 1/3 ph. from 208 and 440V. also includes VRD and AFS. Also allows a secure generator connection a 30% smaller than the traditional inverters and allows up to 150 meters extensions. Without any power loss. Allows to weld rods continuously from 1/4 (6.0 mm) and 5/32 (4.0mm). 6013, 7018, 6010, 6011, SS…
Features
- Makes easier to START the ARC, preheating the rod.
- Improves the ARC STABILITY, and prevents the rod from sticking.
- If the rod sticks, the machine will stop the power, so it can start again easily.
- Facilita el INICIO del ARCO en TIG, sin contaminación del tungsteno.
- Makes easier the start of the Arc in TIG without contaminating the tungsten.
- The ultimate technology by microprocessor to provide you the BEST ARC.
- ULTRA POWER, it’s a technology SWEISS exclusive, allows to connect the machine power source from 95 to 270V. Saves 40% of electric consumption. Allows to use power generators about 30% smaller. More power when plug to 110V.
Included
- Rod Holder set, 3m cable, cu16.- (SWKPE163)
- Earth clamp set, 3m cable, cu16. – (SWKPM163)
| Tema | Sweiss® Welder Skyarc 3250 MX |
| Amperaje | 10-320 Amps |
| Ciclo de deber a 40°C | 50% |
| Tipo actual | DC |
| Ocv | 50 – 95V (ULTRA ARC) |
| Tensión de entrada | 110 – 560V |
| Frecuencia | 50 / 60 Hz |
| Consumo máximo (220V) | 35A |
| TIG | LIFT ARC |
| Peso | 22 kG |
| Dimensiones (mm) | 330 x 140 x 230 |
| IP | IP23S |
| Aislamiento | F |
| Tipo de conexión | 1/2/3 |
| Rodes | Ø 1.6 – 6.0 mm. (3/16”) |
| Conectores rápidos (DINSE) | 35/50 |
| Material frontal/back | Plástico |
| Material de colocación | Acero |
| Reglamento | Reglamento |
| Tipos de varilla | 6013, 7018, 6011, SS... |
| Duración | 14' ' |
| Width | 6'' ' |
| Altura | 10' ' |
| Peso | 51 libras |
| Accesorios | Si el Amparaje a Usarse es de 250 o Más: Welding Cable - 219.09.00120 |
